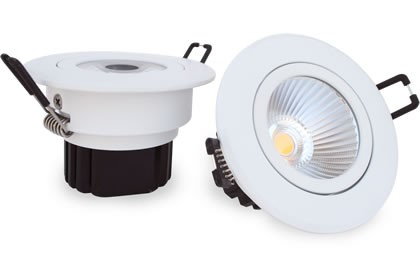

LED Downlights ST
lighting direction adjustable (R70 and R140 models)
lifetime up to 50.000 hours
various designs with simple white or elegant silver
lens or reflector optional
Specifications
Lumen Output580 - 2220 Lumen
Power Consumption8,5 - 30 Watt
Voltage / Hertz220 - 240 V / 50 - 60 Hz
Light Color2700 - 3000 Kelvin
Color Rendering IndexCRI >83 / >90
LED TypeCOB
Beam Angle38° / 60°
MaterialAluminium Die-Casting, Reflector / PMMA Lens
Corpus Colorwhite / silver (R70 models)
CertificatesCE, RoHs
Safety TypeIP43

Number Model Lumen Watt Kelvin SC Beamangle Dimming Material
101447 R70 7-580 580 8.5 3000 III SELV 38° Dimming with TRIAC Driver Alu silver/Aluminium Reflector Datenblatt
101263 R70 7-580 580 8.5 3000 III SELV 38° Dimming with TRIAC Driver Alu white/Aluminium Reflector Datenblatt
100256 R70 7-620 620 8.5 4000 III SELV 38° Dimming with TRIAC Driver Alu white/Aluminium Reflector Datenblatt
100257 R70 7-620L 620 8.5 4000 III SELV 38° Dimming with TRIAC Driver Alu white/PMMA Lens Datenblatt
101264 R97 7-580 580 8.5 3000 III SELV 60° Aluminium white/Aluminium Reflector Datenblatt
101265 R115 12-830 830 14.0 3000 III SELV 60° Aluminium white/PMMA Diffuser Datenblatt
101104 R115 12-900 900 14.0 4000 III SELV 60° Aluminium white/PMMA Diffuser Datenblatt
101106 R140 30-2080L 2,080 30.0 3000 III SELV 38° Aluminium white/PMMA Lens Datenblatt
100258 R140 30-2220L 2,220 30.0 4000 III SELV 38° Aluminium white/PMMA Lens Datenblatt
